This 4 zone 2.4G RF remote RGB led controller adopt the most advance PWM control technology, can control all kinds of 3 channel (common anode) LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is with indicating light and power off memory function, next time to used it, will start with the model it save. Easy connection and simple to used is the representative advantages of this controller. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference .
Technical Parameters
* Supply Voltage：DC12~24V
* Output：3 CMOS output
* Output current： <4A/CH

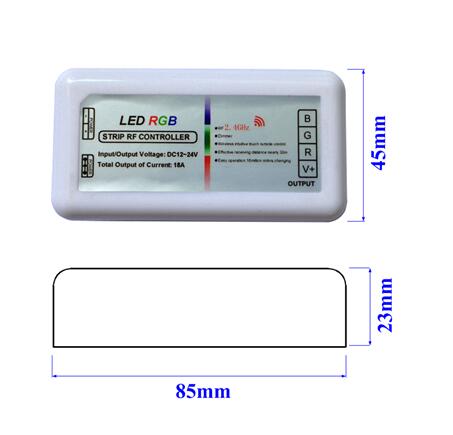

* Receiver size：L85*W45*H23mm
* Connection mode：common anode
* Static power consumption：<1W
* Output Power：12V:<144W, 24V:<288W
RF frequency：2.4G
Remarks：This remote are not support 4 group control version. The “W” button is the “RGB” mix color.

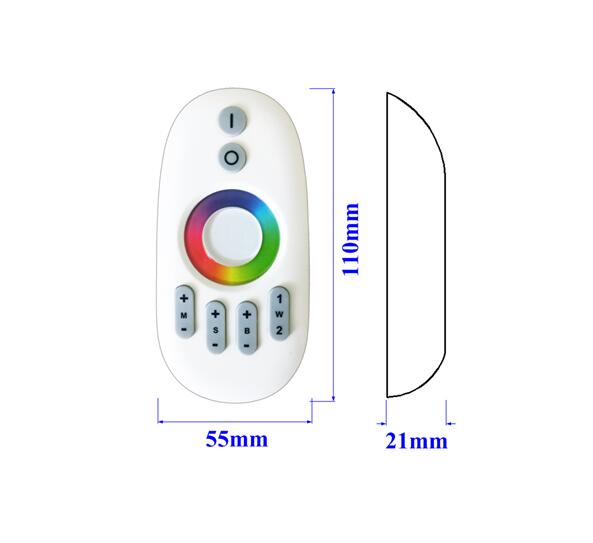

● Operation method:

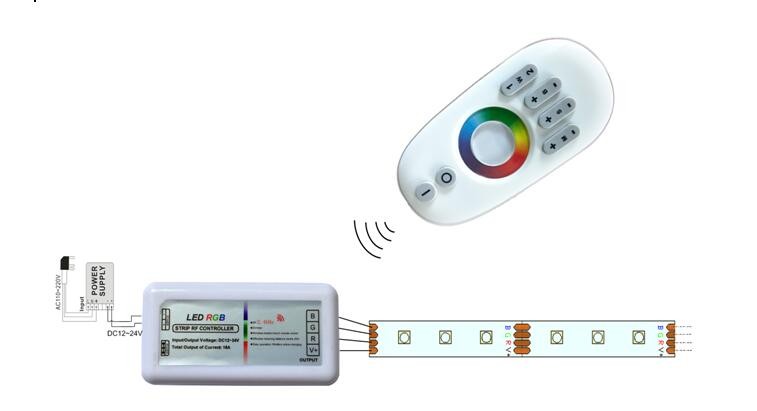

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).
3.In ON station,only press the “MODE+” button or “MODE -”button to choose the the former or later mode, total are 28 modes.
4.When in the cycle mode ,Press the “MODE +” Button it will turn into“Static Red MODE”(The 1st mode). Press the “MODE -” Button it will turn into the “White stroboscopic MODE”(The 27th mode)
5. Press the “MODE+/MODE -” Button when is in the touch color wheel adjust color mode, it will turn into The last of the selected mode.
6.Long Press “Speed +/Speed -”or “Brightness +/Brightness -” button can quickly adjust the speed/brightness.
Match code and clean code Instruction：
Match code:For a new combination, the remote must to match code withe the receiver then it can be used normally.
Please press the ON Button for 5 times within 8 seconds when power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group,he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the OFF Button for 5 times within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks:The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
|
