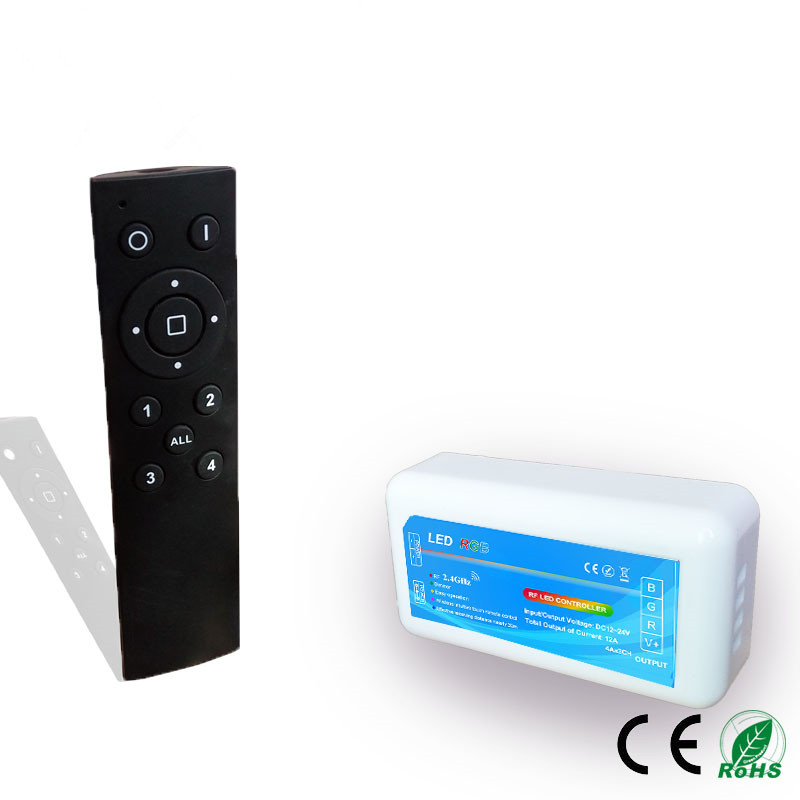

1. 4 zone 2.4G RF led dimmer adopt the press button RF wireless remote control
2. can adjust brightness infinitely to change the lights brightness according to the customer's preference
3. Working voltage: DC 12-24V. control distance: 30 meters
4. Control way: three V-, one V+ channels, link three strips in parallel. Max load per channel: 4A.

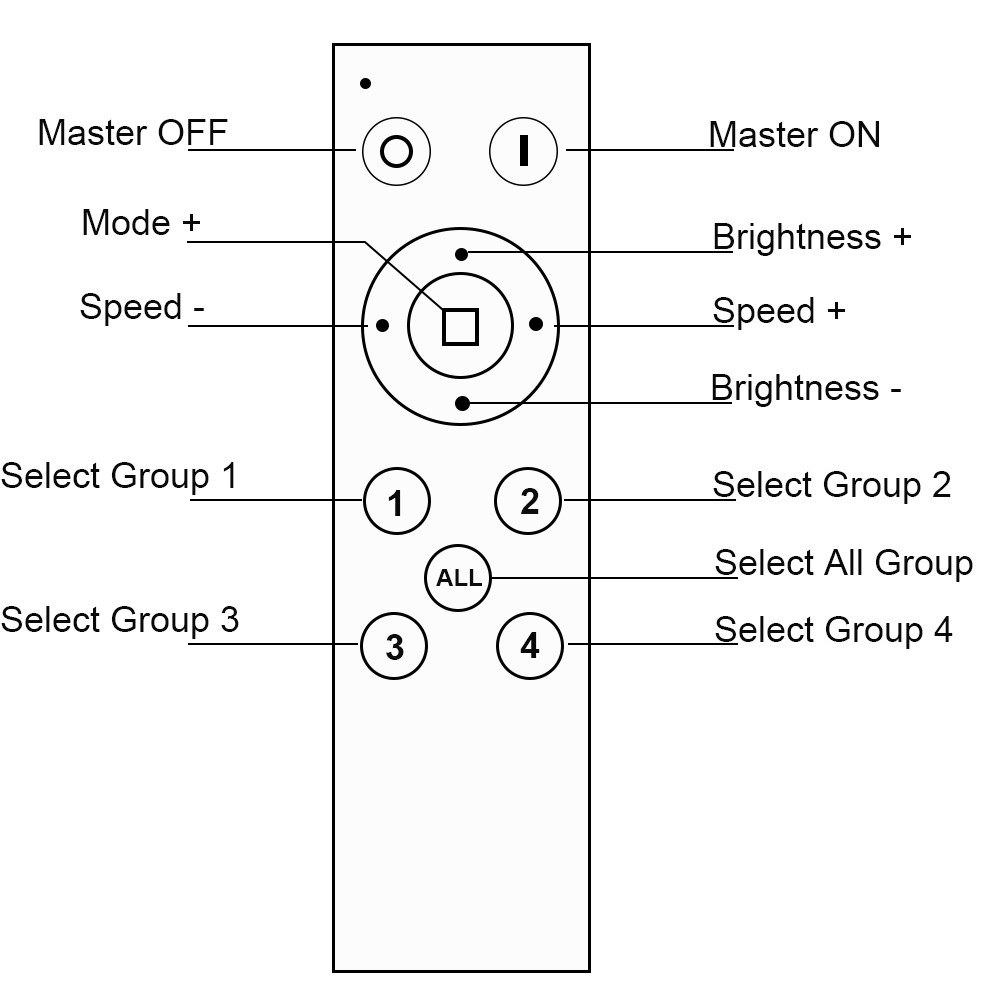

5. one remote can controlled 4 group of light separately, make it realize the one-to-many manipulate control.
Technical Parameters
* Supply Voltage：DC12~24V
* Output：3 CMOS output
* Connection mode：common anode
* Static power consumption：<1W
* Output current： <4A/CH
* Output Power：12V:<144W, 24V:<288W
* RF frequency：2.4G
Remarks:One Remote have 4 Group, each Group can control many pieces controller,and each Group can be control separately, and 4 Group can be control together.Easy to used .

|
