CCY-RIR-3-RGB-W-02

Product Description

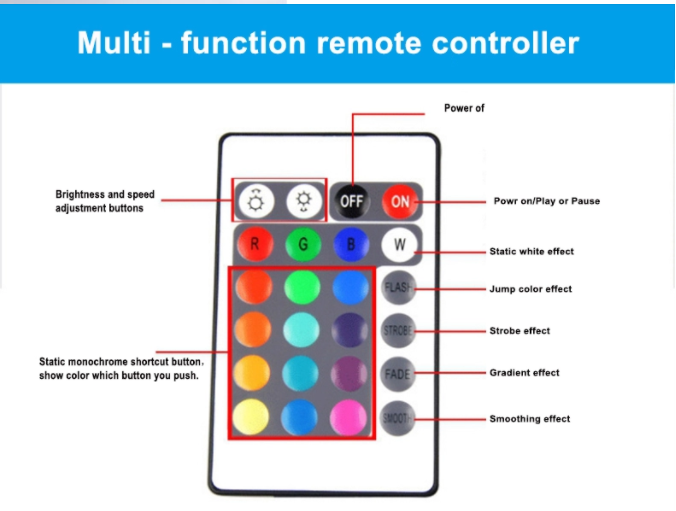

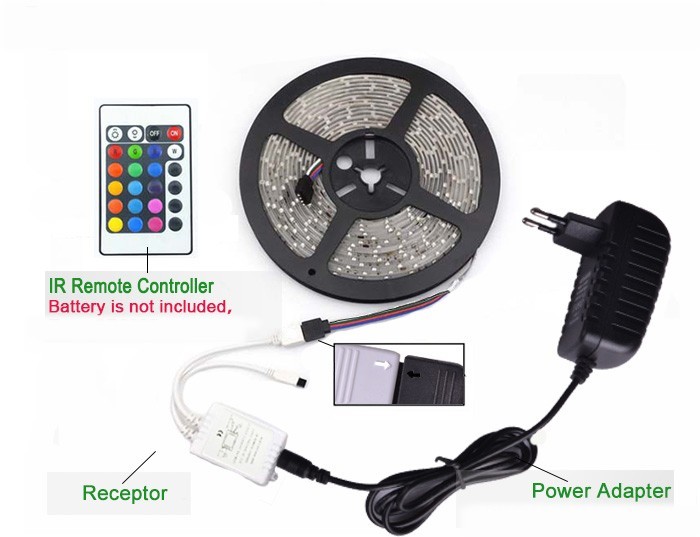

24-key infrared controller adopts the advanced micro control unit, it is used for controlling all kinds of lamp whose source of light is LED. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.

Supply Voltage:DC5V, 12V~24VOptional(pls specify the required voltage on orders)
Controller's dimension:61*35*22mm

Package sizes:90*60*40mm
Net weight:50g Gross weight:60g
Output:3 CMOS Open drain

Output Connection mode:Common anode
Static power consumption :<1W

Output Current:<2A(each circuit)
Output Power:5V:<30W, 12V:<72W, 24V:<144W
Carton size:415*315*210mm/100pcs;

Carton size :415*315*385mm/200pcs
