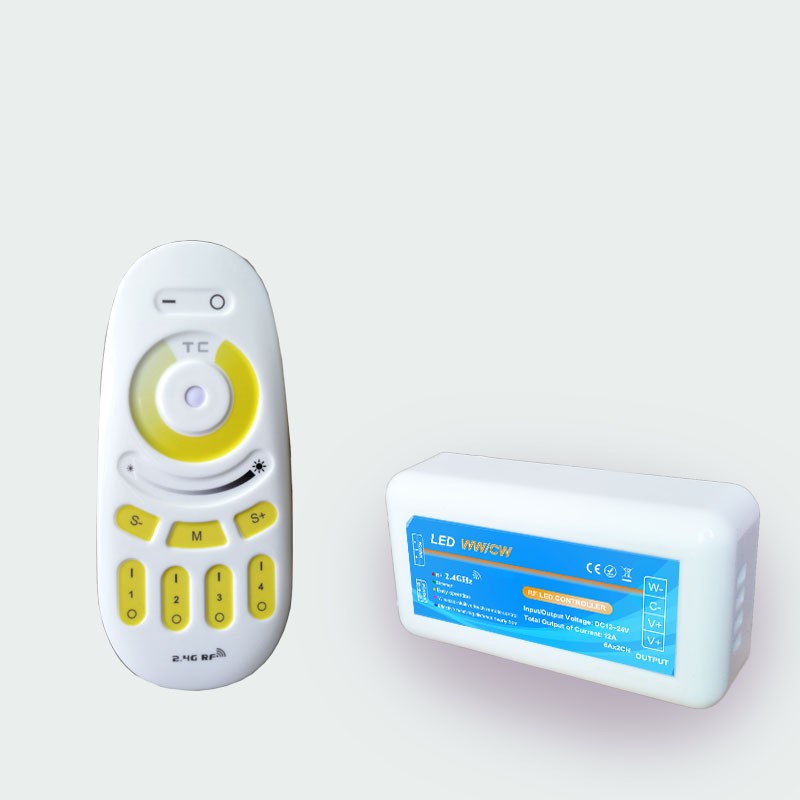

This 4 zone 2.4G RF color temperature controller adopt the press button RF wireless remote control, can adjust to change the lights color temperature according to the customer’s preference. 2.4G frequency make it more stable and more strong anti-jamming capability to use. Besides, one remote can control 4 groups of light independently, make it realize the one-to-many manipulation control.
Technical Parameters:
* Supply Voltage：DC12~24V
* Output：2 channel output
* Output current： <6A/CH
* Size：L85*W45*H23mm
* Connection mode：common anode
* Static power consumption：<1W
* Output Power：12V:<144W, 24V:<288W
* RF frequency：2.4G
Remarks:One Remote have 4 Group, each Group can control many pieces controller,and each Group can be control separately, and 4 Group can be control together.Easy to used.

Match code and clean code Instruction：

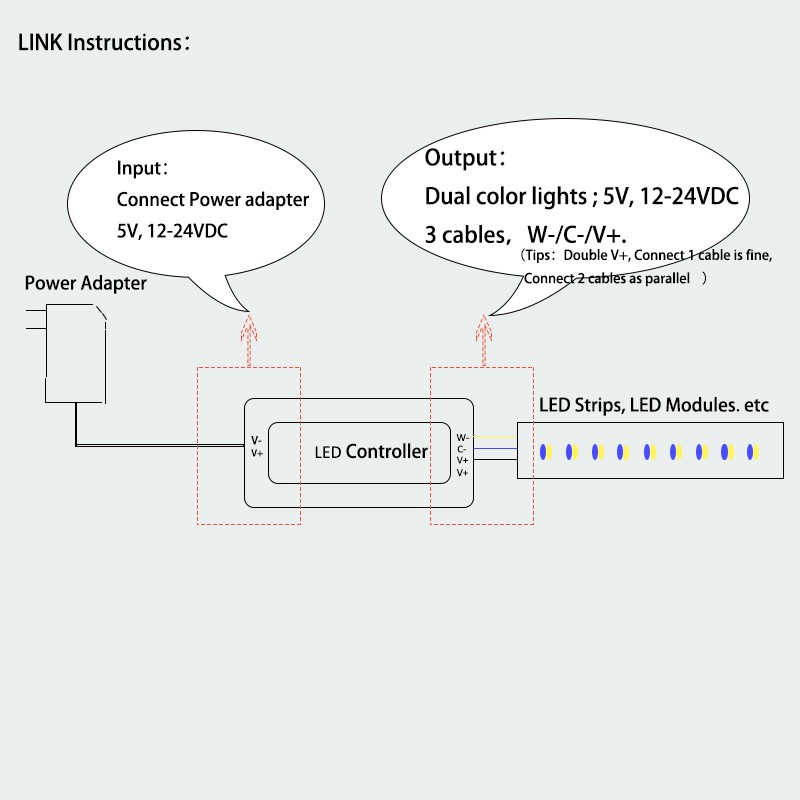

1 For a new combination, the remote must to match code with the receiver then it can be used normally. Before that, you must ensure the LED controller, power supply and LED light are connected correctly, then re-power it again.
2 Match code: Please press the “Group X(X=1,2,3,4) ON” Button for 2 seconds within 6 seconds when power the controller, then the output led light will flash for 3 times, this means the remote is match code with this receiver successfully, they can used normally.
3 Clean code: if want to change the light control group, can clean the code off. After cleaning code, the remote and receiver will be in the initial state. Operation method: Press the “Group X(X=1,2,3,4) OFF ” Button for 2 seconds within 6 seconds when power the controller, till the output light flash for 3 times, means clean code successfully.
Remarks: The regular product for sale is a kit (one remote and 1 receiver). The user can match code freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
|
