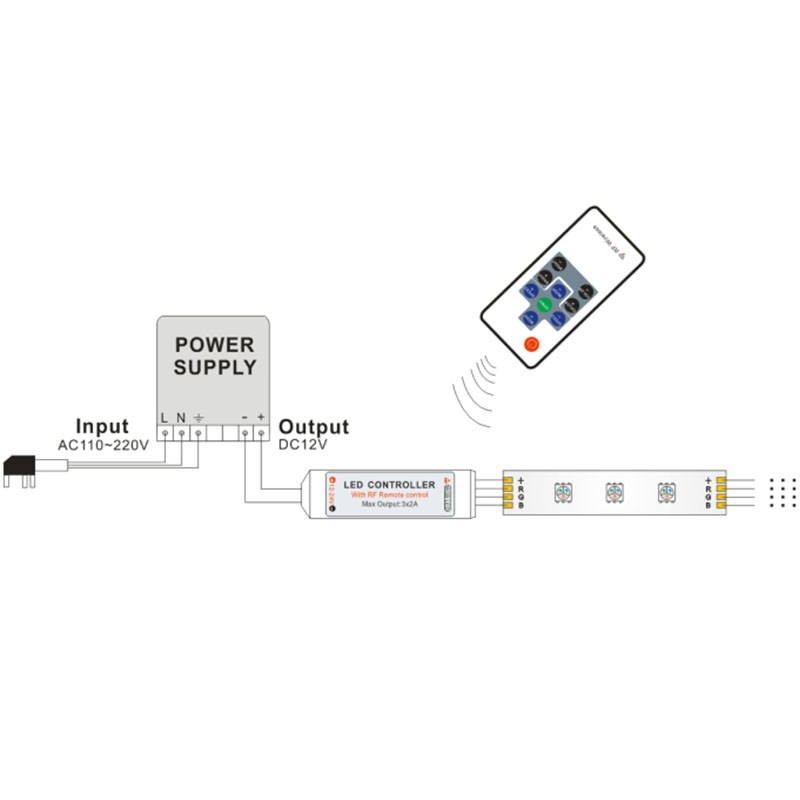

This RF Mini RGB controller adopted the advanced computer control chip, 433 MHz Frequency technology. It can be installed & used easily, dynamic modes like jump, fade, strobe; plenty static colors all can be selected with your command. It also has memory function because we inside the memory chip on the PCB. With all these high functions, we still make it so tiny, and make it more economical and practical. It’s mainly used to control all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc.
Technical Parameters:
* Supply Voltage：DC5V~24V

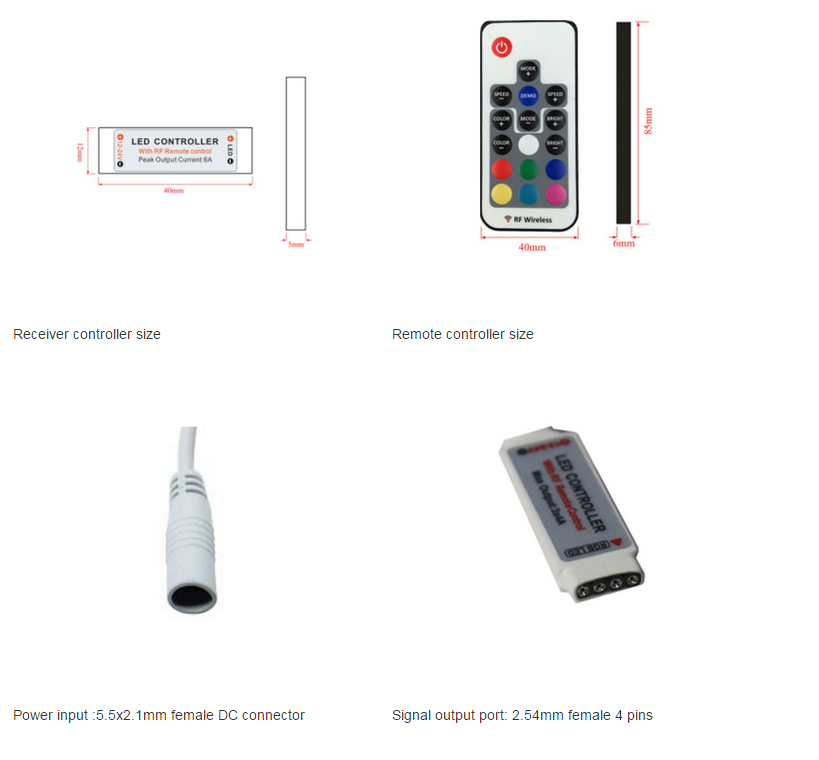

* Controller's dimension：40*12*5mm
* package size：130*90mm
* Net weight：35g
* Output：3 CMOS Open drain Output
* Connection mode：Common anode
* Static power consumption ：<1W
* Output Current：<2A(each circuit)
* Output Power：5V:<30W, 12V:<72W， 24V:<144W

|
