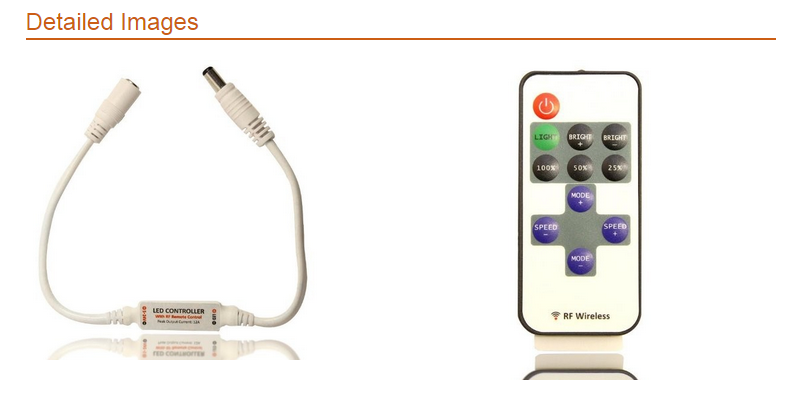

This RF Mini Single color controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can adjust the lights brightness according to their actual requirement.This controller is with 8 kinds of monochrome dynamic model,including flash blasting, breathing, getting brighter and darker , strobe, flicker and other models.With wide range of speed level( total have 10 level of speed). At the same time, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
Technical Parameters:
* Supply Voltage：DC5~24V
* Controller's dimension：40*12*5mm
* package size：130*90mm
* Net weight：35g
* Output：1 CMOS Open drain Output
* Connection mode：Common anode
* Static power consumption ：<1W
* Output Current：<6A(each circuit)
* Output Power：5V:<30W, 12V:<72W， 24V:<144W

|
