Product Description:

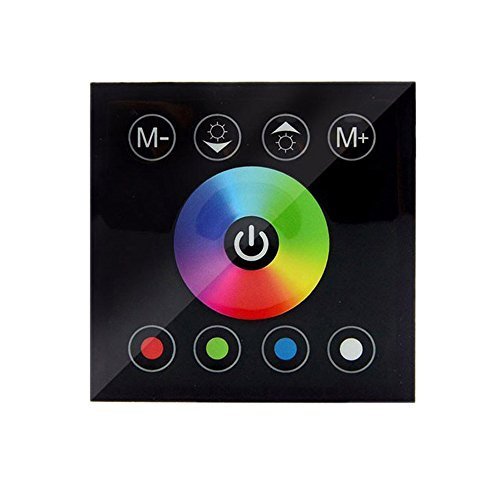

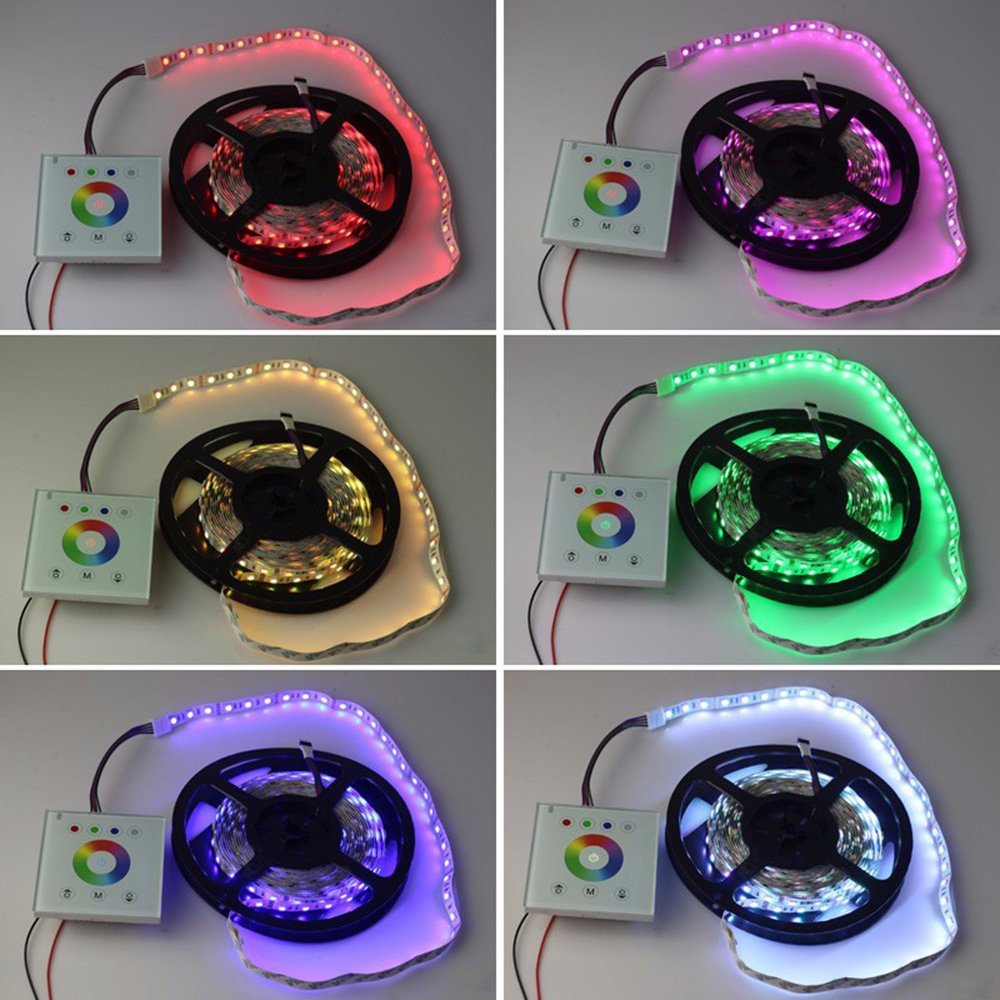

Touch Panel is a new upmarket controller which is newly developed by our factory. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip,increases the touch sensitivity, reduces wrong trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use ,etc. It can realize jump change, gradually change, strobe and other effects based on application requirement.
Technical Parameters
* Supply Voltage：DC12V~24V
* External dimension：L86*W86*H36 mm
* Package size：L112*W104*H54 mm
* Net weight：128g
* Gross weight：187g
* Output：4 CMOS Open drain Output
* Connection mode：Common anode
* Static power consumption ：<1W
* Output Current：<4A(each circuit)
* Output Power：12V:<192W, 24V:<384W

|
