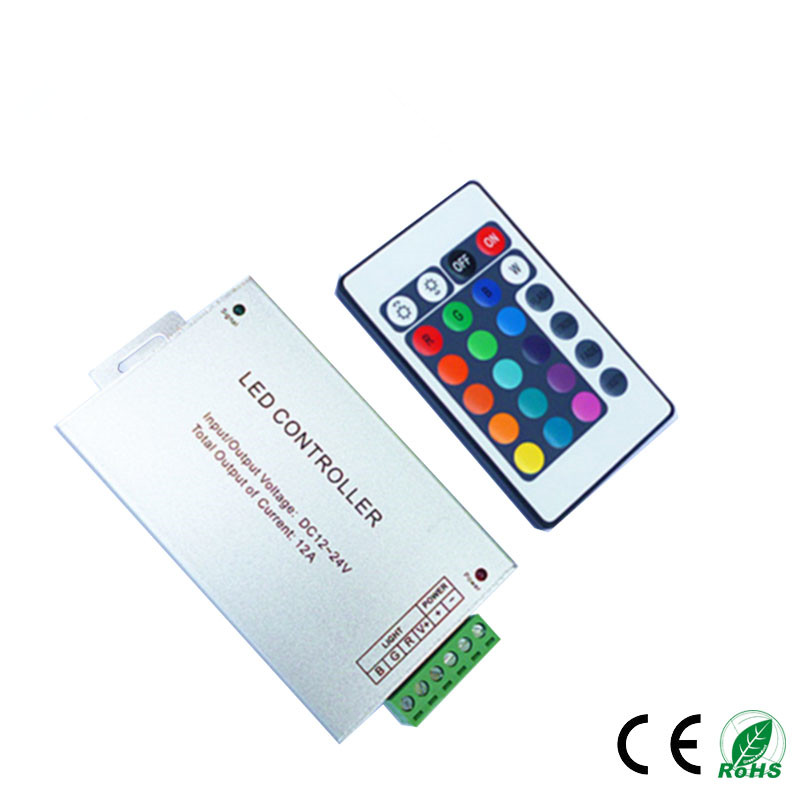

24-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.
Technical Parameters:
* Supply Voltage：DC5V, 12V~24VOptional(pls specify the required voltage on orders)
* Output：3 CMOS Open drain Output
* Output Current：<4A/CH or <8A/CH （optional）
* Controller's dimension 130*65*25mm
* Package sizes：135*80*55mm
* Net weight：133g
* Gross weight：166g
* Connection mode：Common anode
* Static power consumption ：<1W
* Output Power：4A -5V:<60W, 12V:<144W, 24V:<288W
* 8A -5V:<120W, 12V:<288W, 24V:<576W
* Carton size：570*420*290mm/100pcs
|
