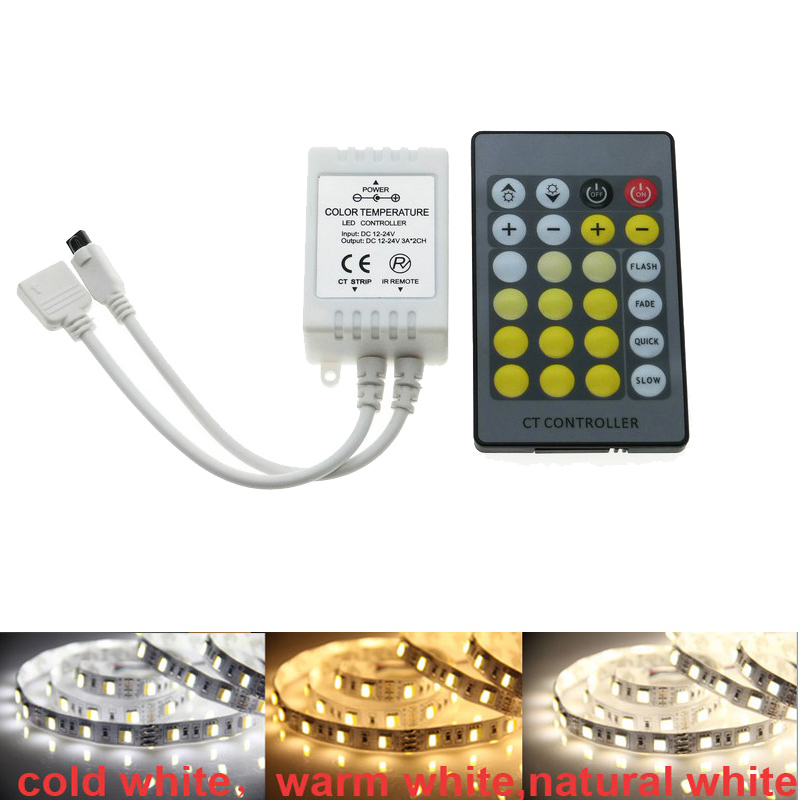

This controller is adopt the most mature infrared remote control technology, mainly used to controlled Color temperature led strips. User can choose different color temperature effect,can adjust the light’s brightness and turn on/off the light,etc.Besides , this controller is with lost power memory function,when powered the controller, it will be in the same color temperature as last time before power off. Most of the function are very clear on the hot key,and its easy to be wiring,very simple to used.
Technical Parameters:
* Supply Voltage：DC5V, 12V~24VOptional(pls specify the required voltage on orders)
* Controller's dimension：61*35*22mm
* Package sizes：90*60*40mm
* Net weight：49g
* Gross weight：60g
* Output：3 CMOS Open drain Output （the signal of the two C channel are the same）
* Connection mode：Common anode
* Static power consumption ：<1W
* Output Current：<3A(each circuit)
* Output Power：5V:<30W, 12V:<72W, 24V:<144W
* Carton size :415*315*210cm/100pcs;
* Carton size :415*315*385cm/200pcs

|
